Replacing edge type ultrasonic rubber cutting knife is the use of high intensity ultrasonic energy, will be cut rubber material local heating melting, to achieve the purpose of precise cutting, so no sharp edge. Especially suitable for cutting viscous and elastic materials, frozen materials (e.g. food, rubber, etc.) or inconvenient pressurized objects.

The principle of ultrasonic cutting is completely different from that of traditional cutting. Ultrasonic cutting is the use of ultrasonic transducer energy, will be cut the local heating melting of the material, so as to achieve the purpose of cutting the material.

The ultrasonic generator converts the power of household electricity into high voltage ALTERNATING current and transmits it to the ultrasonic transducer.

Ultrasonic transducer can convert the input high voltage electrical energy into mechanical energy, that is, ultrasonic energy. The transducer moves back and forth in the longitudinal direction, stretching at a frequency equal to the frequency of the high-frequency AC current supplied by the driving power supply.

The function of the ultrasonic horn is to fix the whole ultrasonic vibration system and increase the output amplitude of the transducer.

Under the action of ultrasonic horn, ultrasonic tool head (tool head) can further enlarge the amplitude and make ultrasonic focus. The ultrasonic tool head, on the other hand, outputs ultrasonic waves and uses a cutting edge similar to a cutter to focus ultrasonic energy on the cutting part of the material to be cut. Under the action of huge ultrasonic energy, the rubber material immediately softens and melts. At this time, as long as a small cutting force is applied, the purpose of cutting rubber can be achieved.

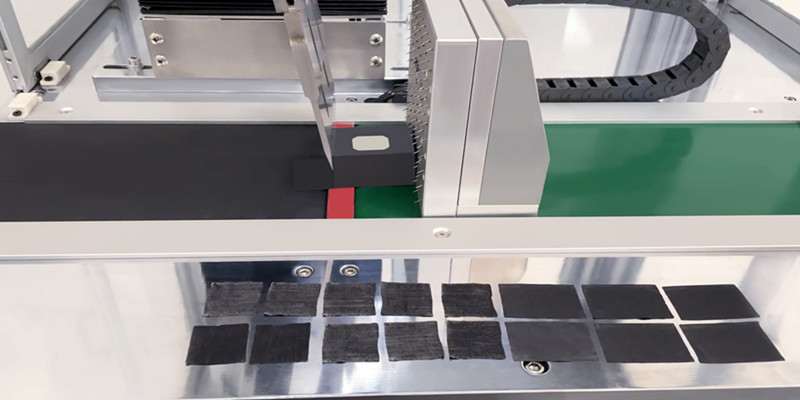

Shift-edge ultrasonic rubber cutter is a kind of ultrasonic equipment specially used for cutting rubber, which can improve the cutting efficiency and material utilization rate to a certain extent. So ultrasonic cutting does not need a sharp edge, do not need a lot of pressure, will not cause rubber material edge collapse, damage, improve the utilization rate of rubber material. At the same time, because the cutting knife is doing high frequency ultrasonic vibration, the friction resistance of the blade and the material contact surface will become particularly small, and the rubber material is not easy to stick to the blade.
