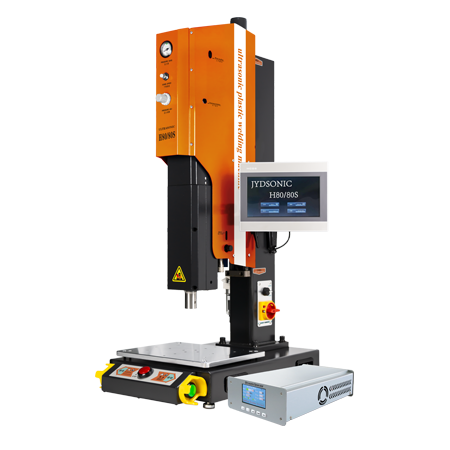

Ultrasonic Plastic Welding Machine

FAQ
  • Q: What are the advantages of the servo motor equipped with the ultrasonic welding machine?
    A: High precision positioning and control: The servo motor can accurately control the position and speed of the ultrasonic welding head, ensuring precise alignment during the welding process. This high-precision positioning helps to reduce welding deviations and improve welding quality. Quick response: The servo motor has a fast response speed and can quickly adjust welding parameters to meet different welding needs. This enables ultrasonic welding machines to perform excellently in dealing with complex and ever-changing welding tasks. High efficiency: Due to the precise control and fast response of servo motors, ultrasonic welding machines can achieve more efficient welding operations. This helps to reduce energy consumption, improve production efficiency, and lower production costs. Stable operation: The servo motor has excellent stability and can maintain stable performance under long-term high load operation. This helps to reduce equipment failures, improve equipment reliability and service life. Intelligent control: Modern servo motors are usually equipped with intelligent control systems, which can achieve automated and intelligent welding operations. This helps to reduce operational difficulty and minimize welding quality issues caused by human factors.
  • Q: What are the common faults of ultrasonic plastic welding machines and how to solve them?
    A: 1、 Common faults Machine failure to start or unstable operation: may be caused by power supply issues, blown fuses, or circuit failures. Poor welding effect: The welding head does not generate heat or the heat is uneven, resulting in unstable welding quality. Welding head damage: Prolonged use or improper operation may cause welding head wear or damage. Ultrasonic generator malfunction: The generator is unable to generate a stable ultrasonic signal, which affects the welding effect. 2、 Solution To address the issue of machine failure to start or unstable operation, first check if the power plug is properly plugged in and if the power cord is damaged. Then check if the fuse is blown, and if necessary, replace the fuse. Finally, check if there are any faults in the circuit, and if necessary, seek professional repair. For issues with poor welding performance, first check the condition of the welding head to ensure that it is clean and undamaged. Then adjust welding parameters, such as welding time, pressure, etc., to obtain the best welding effect. If the welding head is damaged, it should be replaced with a new one in a timely manner. When replacing welding heads, pay attention to selecting welding heads that match the machine model and specifications, and follow the operating instructions for replacement. When the ultrasonic generator malfunctions, first check whether the power connection of the generator is normal. Then check if there is any damage or aging of the electronic components inside the generator. If necessary, ask professional personnel to repair or replace them.
  • Q: How to debug ultrasonic welding machines?
    A: Cleaning work: Before welding, it is necessary to clean the welding surface, welding fixture, and ultrasonic vibration head to ensure that they are all clean and free of grease, dust, or other dirt. Use appropriate cleaning agents and tools for cleaning to ensure that the welding effect is not affected by impurities. Check the machine status: Check if all parts of the ultrasonic welding machine are intact and there are no loose or damaged components. Turn on the power switch, perform no-load operation, and observe if there is any noise or other abnormal situation in the equipment. If there is any, it should be eliminated first. Determine welding parameters: Based on specific welding materials and products, determine appropriate welding parameters, including amplitude, welding time, and welding pressure. These parameters can be set appropriately through experimentation and experience. Adjusting amplitude: Amplitude is a key parameter for the welding effect of ultrasonic welding machines, and its magnitude directly affects the welding quality. According to the characteristics of welding materials and products, appropriate amplitude adjustment can be achieved through testing and adjusting the amplitude controller. Adjust welding pressure: According to welding requirements, gradually increase the power of the welding machine until the required welding strength is achieved. This usually involves adjusting the cylinder or pressure controller to ensure that the welding pressure is moderate, neither too large nor too small. Placing objects and starting: Place the two objects that need to be welded between the upper and lower molds of the ultrasonic welding machine and ensure their accurate positions. Then press the start button to start the welding process. During the welding process, it is necessary to closely monitor the welding situation, ensure that the welding head is pressed down to the bottom, and keep the pressure gauge within the normal range. Check welding effect: After welding is completed, remove the template, take out the product, and carefully inspect the appearance and quality of the product. Observe whether the welding joint is uniform, firm, and free of cracks or defects.
  • Q: Why is the output power of ultrasonic welding machines sometimes unstable?
    A: Aging or burning out of ultrasonic oscillator: Ultrasonic oscillator is the core component of ultrasonic welding machine. If aging or burning out occurs, it will lead to unstable power. At this point, it is necessary to check the working status of the ultrasonic oscillator and replace it if there are any problems. Poor connection of the transducer: The transducer is a key component that converts electrical energy into mechanical energy and generates ultrasonic vibration. If the transducer is poorly connected or loose, it will affect the transmission of power, leading to a decrease or instability in welding quality. Therefore, it is necessary to check the wiring of the transducer and tighten the connecting nuts. Voltage and air pressure instability: Voltage and air pressure are important factors affecting the output power of ultrasonic welding machines. If the voltage or air pressure is unstable, or the pressure is insufficient, the output power of the welding machine will also be affected. Mold frequency deviation: Long term use of molds may cause frequency deviation, which can also affect the output power stability of the welding machine. Welding material issues: Changes in the quality, thickness, size, and other factors of welding materials may affect the output power of the welding machine. For example, poor materials or changes in welding materials during use can lead to unstable welding quality. Equipment issues: Some low-quality welding equipment may experience frequency deviation, equipment tilt back, and other issues during long-term operation, which can affect the stability of output power. Unreasonable parameter debugging: Improper parameter adjustment may also lead to unstable output power. For example, improper parameter settings such as vibration time and dwell time may affect the welding effect.
  • Q: What materials can ultrasonic plastic welding machines weld?
    A: Ultrasonic plastic welding machine can weld various plastic materials, including but not limited to the following: 1. Thermoplastics: such as polypropylene (PP), polyethylene (PE), polystyrene (PS), polycarbonate (PC), polyamide (PA), etc. These plastics become soft and flow when heated, making them suitable for ultrasonic welding machines. 2. Engineering plastics: such as polyimide (PI), polyether ether ketone (PEEK), nylon (Nylon), etc. These plastics typically have high temperature stability and excellent mechanical properties, making them suitable for manufacturing in fields such as automobiles and aerospace. 3. Environmentally friendly plastics: such as bio based plastics (PLA, PHA), biodegradable plastics, etc. These plastics have renewable and environmentally friendly properties, making them suitable for sustainable production needs. In addition, some specific plastic materials such as ABS, Acetal, PPS, PS, HIPS475, PC+ABS, PBT, PPE, PPO, PSF, SAN, etc. are also suitable for ultrasonic welding machines. These plastic materials have different characteristics and applications, and efficient and accurate plastic connections can be achieved through ultrasonic welding.
  • Q: What is the reason why ultrasonic plastic welding machines do not produce waves?
    A: The failure of ultrasonic plastic welding machines to produce waves may be caused by various reasons. Here are some common reasons and corresponding solutions: Power supply issue: First, check if the power supply voltage is stable, if the power plug is plugged in properly, and if the power switch is turned on. If the power supply voltage is unstable or too low, it may cause the machine to malfunction. Ultrasonic generator malfunction: The ultrasonic generator is the core component of the welding machine. If the internal circuit components of the generator are damaged, the output frequency is abnormal, or the oscillator does not work, it will lead to no waves. At this point, professional maintenance personnel are needed for inspection and repair. Transformer failure: A transducer is a key component that converts electrical energy into mechanical vibration energy. If the transducer is damaged or poorly connected, it can also lead to non generation of waves. Check if the transducer is intact and the connection is secure. If necessary, replace it with a new transducer. Welding head issue: Welding head is a critical part of ultrasonic energy transmission to plastic parts. If the welding head is damaged or severely worn, it may lead to a decrease in energy transfer efficiency, resulting in no waves. Check if the welding head is intact, and if there is any damage, replace it in a timely manner. Pneumatic system issue: Some ultrasonic plastic welding machines rely on pneumatic systems to drive the welding head to vibrate up and down. If the air pump malfunctions, the air circuit is blocked, or the solenoid valve fails, it will affect the vibration of the welding head, leading to no waves. Check if all components of the pneumatic system are working properly, and if there are any faults, repair them in a timely manner. Control system malfunction: The control system is responsible for coordinating and controlling various parts of the ultrasonic plastic welding machine. If there is a malfunction in the control system, such as a damaged circuit board, sensor failure, or program error, it may result in no wave generation. Check if all components of the control system are working properly, and if necessary, have professional personnel repair them. Artificially set issues: Check if the equipment is in automatic mode, if the welding time and delay time are set correctly, and if the transducer connection line is connected properly. If not set properly, it may result in no wave generation. Make correct settings and adjustments according to the equipment manual or operating manual. Environmental factors: Environmental factors may also have an impact on the normal operation of ultrasonic plastic welding machines, such as high or low temperature, high humidity, etc. Ensure that the equipment is in a suitable working environment and avoid adverse environmental factors affecting the equipment.
  • Q: What are the components of an ultrasonic plastic welding machine?
    A: The ultrasonic plastic welding machine mainly consists of the following key parts: Ultrasonic generator: It is a vibration source that contains piezoelectric ceramic discs sandwiched on metal plates tightly clamped onto titanium cylinders. The generator receives high-frequency electricity from the system power module through cables and converts the power frequency voltage (such as 50/60Hz) into ultrasonic frequency voltage (such as 15-40kHz). Transducers: Utilizing the inverse piezoelectric effect of piezoelectric ceramics (PZT), the electrical energy generated by the ultrasonic generator is converted into mechanical energy, that is, the ultrasonic frequency voltage is converted into ultrasonic mechanical vibration of the same frequency. A transducer typically includes a driving part, a fixed part, and a working part, with the driving part being the core part. Amplitude modulator: Its main function is to amplify the mechanical vibration amplitude of the transducer, ensuring sufficient amplitude during the welding process. Welding head (also known as ultrasonic mold): This is a precision device typically made of high-strength aluminum or titanium alloy. Its main function is to apply ultrasonic mechanical vibration to the welded part, ensuring that the welding end face reaches the maximum amplitude and plays a certain amplitude modulation role. The design of the welding head will be matched according to the specific contour of the workpiece. Workpieces and energy conducting bars: Workpieces are plastic components to be welded, and energy conducting bars are used to guide the transmission of ultrasonic energy. According to the thickness of the workpiece, welding can be divided into near-field welding and far-field welding. Automatic control system: composed of a time controller or an integrated circuit chip timer, used to control the sequence and time of the entire welding process. Pneumatic transmission device: including filter, pressure reducing valve, oil mist eliminator, commutator, throttle valve, cylinder, etc., to provide the required pneumatic force for the welding process.
  • Q: What is the reason why the ultrasonic plastic welding machine welding products are not firm?
    A: 1. Machine's own reasons: Although the ultrasonic generator is a core component, the design and machining accuracy of the frame are also very important. If the rack design is unreasonable or the processing is not precise, it may affect the welding pass rate of the product. If the machine design is unreasonable or the processing is rough, it may not be possible to find the balance position of the mold when replacing the ultrasonic mold, resulting in the inability to firmly weld the welded product. 2. Improper adjustment of process parameters: The amplitude directly affects the pressure and welding quality of the welding joint. If the amplitude is too small, the pressure on the welding joint is insufficient, and the welding is not firm; If the amplitude is too large and the temperature of the welding joint is too high, it may burn the welding joint surface, leading to weak welding. Parameters such as pressure, welding time, and welding temperature also need to be adjusted appropriately based on the type and thickness of the plastic. If the parameters are not set properly, it may affect the firmness of the welding. 3. Material issues: The type and quality of plastic materials can also affect the welding effect. If the material quality is not up to standard, or if there is wear on the injection mold, it may lead to inconsistent welding results, thereby affecting the firmness of the welding. 4. Operational issues: When operating the ultrasonic plastic welding machine, if the vibration gauge exceeds the red zone, it may be necessary to reduce the pressure, reduce the number of output segments, or adjust the sound wave. If the problem cannot be solved after adjustment, it may be necessary to contact the relevant company for handling. The vibrator and generator of the ultrasonic plastic welding machine have high-voltage circuits, and improper use may cause damage, thereby affecting the welding effect. To solve the problem of unstable welding products in ultrasonic plastic welding machines, it is recommended to inspect and adjust from multiple aspects such as machine, process parameters, materials, and operation. At the same time, regular maintenance and upkeep should be carried out on the equipment to ensure that it is in good working condition. If the problem still cannot be solved, it is recommended to seek the help of professional technical personnel.
  • Q: Can ultrasonic welding machines weld fabrics?
    A: Ultrasonic welding machines can weld fabrics in certain situations. Specifically, it can be used for spot welding thin and soft fabrics. However, ultrasonic welding machines may not be suitable for heavy or brittle fabrics. Therefore, when choosing whether to use an ultrasonic welding machine to weld fabric, factors such as the material and thickness of the fabric need to be considered.
  • Q: How to extend the service life of ultrasonic tool heads?
    A: To extend the service life of ultrasonic tool heads, the following aspects can be taken into consideration: Choose high-quality materials: Choose tool heads made of high-performance, high hardness, and high-strength materials, such as tungsten steel, titanium alloy, etc., which can withstand high-frequency vibration and thermal stress. Optimizing structural design: The structural design of the tool head also has a significant impact on its lifespan. For example, tool heads designed with multiple resonance frequencies, smaller amplitudes, and providing effective anti vibration measures can effectively reduce losses and fatigue. Control working conditions: Strictly control welding time and temperature and other working conditions to avoid tool heads working under excessive loads, stresses, and temperatures, in order to reduce their losses. Correct use and maintenance: Follow the correct use and maintenance steps, such as regularly cleaning the tool head, avoiding excessive wear, ensuring welding quality, and extending the service life of the tool head. Adopting appropriate automated machine programming: Proper automation programming and good maintenance practices can greatly extend the lifespan of tool heads.
