Overview: Ultrasonic screening system is a simple and practical, reliable screening system, is the most effective solution to the current mesh blockage. Can be widely used in pharmaceutical, metallurgy, chemical, mineral processing, food and other requirements of fine screening and filtration industry, screening and filtration of high precision, effectively solve the agglomeration, static electricity, strong adsorption stuck mesh and other screening problems, is a major technical breakthrough in the domestic screening industry.

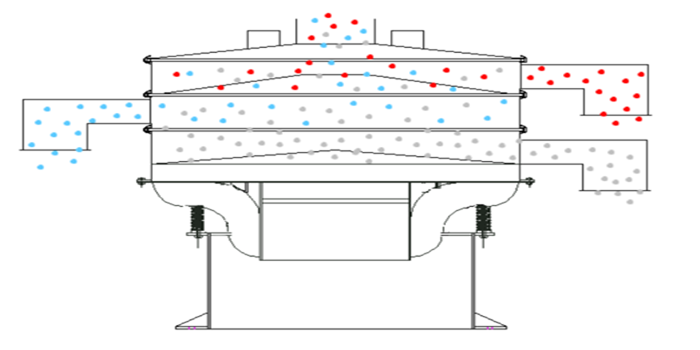

Basic working principle: ultrasonic screening system is composed of ultrasonic resonant power supply, oscillator and resonance ring. The high frequency electric oscillation generated by the ultrasonic resonant power supply is converted into high frequency sinusoidal longitudinal oscillation wave by the oscillator. These oscillation waves are transmitted to the resonance ring to generate resonance, and then the vibration is evenly transmitted to the screen surface by the resonance ring. The material on the screen is doing low-frequency three-dimensional vibration at the same time, superimposed on the ultrasonic vibration, not only can prevent mesh clogging, but also can improve the output and quality of screening
