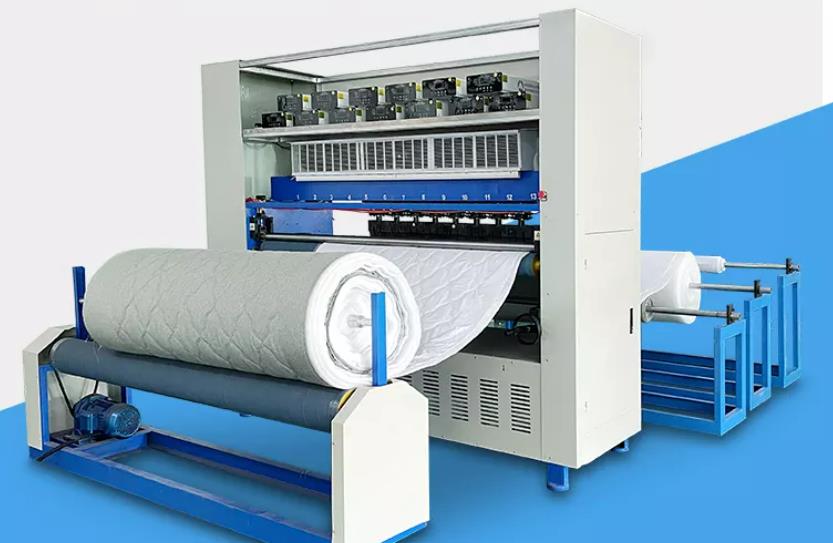

Ultrasonic compound machine manufacturer in the use of each part of the function description

Before using the new machine, you must read the manual of ultrasonic pleat cotton machine and be familiar with the contents of this manual.
1. Function description of all mechanical parts
1) Adjust the nut: limit the length distance of cylinder stroke.
2) Pressure wheel cylinder: control the pressure wheel up and down.
3) Press wheel switch: press wheel control switch, on the left side of the nose.
Click the wheel to drop
4) Mold frame: fixed flower wheel.
5) Flower wheel: the mold for stitching and cutting workpiece.
6) Cooling fan: cooling vibration sub-temperature, so that it can work for a long time.
7) Flower wheel cylinder: control flower wheel up and down.
8) Nose: the driving mechanism to fix the flower wheel.
9) Barometer: represents the pressure and pressure applied by the flower wheel on the workpiece.
10) Air pressure valve: adjust air pressure according to actual needs, and the nut should be locked after adjustment.
The adjustment range is generally 1 ~ 10Kg/cm In between.
11) Table panel: the platform for processing workpiece.
12) Vibration box: control the action program of the machine.
13) Vibration cylinder: fixed vibrator and steel die.
14) Rack: support the machine body.
15) Foot pedal: Control the operation of flower wheel and steel die at the right foot position.

16) Flower wheel pedal: Control the rise and fall of flower wheel at the position of the left foot.
