In the modern packaging industry, tube packaging has become a mainstream choice for cosmetics, pharmaceuticals, food condiments, and household chemical products, thanks to its flexibility, portability, and excellent barrier properties.
As market demands for packaging aesthetics, sealing integrity, and production efficiency continue to rise, traditional melt-sealing and heat-sealing technologies struggle to meet high-standard production requirements. Characterized by high efficiency, safety, and precision, ultrasonic tube sealing systems have emerged as core equipment in automated tube packaging lines, driving new trends in the packaging industry.

Working principle of ultrasonic tube sealing systems:
Ultrasonic sealing systems utilize high-frequency vibrational energy to achieve seamless, molecular-level welding—an innovative physical sealing process distinct from traditional heat-sealing methods.

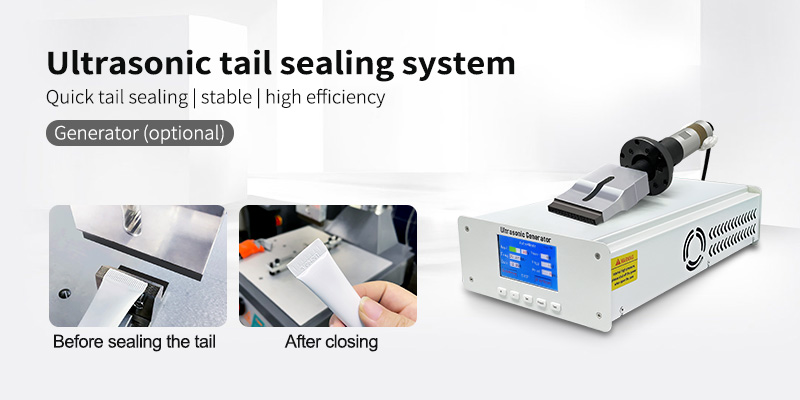

The system employs an ultrasonic generator to produce high-frequency electrical signals (ranging from 20 kHz to 40 kHz), which a transducer converts into high-speed mechanical vibrations; this vibrational energy is then transmitted via a welding die to the tail of the plastic or aluminum-plastic tube.

During the sealing process, high-frequency vibrations induce intense friction between the molecular layers of the tube-end material, generating instantaneous, localized heat at the sealing interface and causing the material to melt rapidly.
Under precise pressure applied by the die, the molten material uniformly fills the gap at the joint. Once the vibration ceases, the material cools and sets quickly, resulting in a secure, airtight seal. The entire process takes only 0.3 to 0.8 seconds and requires no external heat sources, adhesives, or auxiliary solvents, delivering a purely physical, pollution-free sealing result.

Key advantages over traditional sealing technologies:
Compared to traditional hot-air and heat-sealing equipment, ultrasonic tube sealing systems offer significant comprehensive advantages in terms of product quality, production efficiency, and application versatility, effectively resolving many of the pain points associated with traditional packaging processes.
1. No thermal damage; preserves product activity
Traditional heat-sealing processes rely on prolonged high-temperature heating, which can cause thermal denaturation in heat-sensitive contents—such as skincare serums, medicinal ointments, and enzyme-containing condiments—thereby compromising product efficacy and shelf life.
Ultrasonic tube sealing generates instantaneous, localized frictional heat only at the seal point, without transferring heat to the material inside the tube. This completely prevents ingredient oxidation and loss of activity, making it ideal for producing high-value, heat-sensitive products.

2. Precise, secure sealing; eliminates leakage
Ultrasonic welding technology achieves molecular-level fusion of the tube-end materials, resulting in sealing performance far superior to traditional surface bonding.
The sealed tube end features a uniform texture and a neat, attractive finish, free from wrinkles, cracks, or misalignment. The technology consistently delivers watertight and airtight seals, effectively preventing liquid or paste leakage and protecting against product spoilage caused by the ingress of external moisture or dust. It is particularly well-suited for sealing multi-layer composite tubes (e.g., PP/AL/EVOH/PE materials) that are difficult to seal using traditional methods.

3. High efficiency and stability; low operating costs
The ultrasonic sealing process is rapid and streamlined, supporting continuous automated production and significantly boosting line throughput.
The system is equipped with a digital automatic frequency-tracking generator that compensates for power attenuation to ensure stable output, eliminating the need for frequent manual parameter adjustments. The equipment boasts a low failure rate and a long service life. Furthermore, it eliminates the energy consumption associated with the prolonged heating required by traditional heat-sealing equipment, thereby reducing production energy use and overall operating costs.

4. Strong compatibility; wide range of applications
The system is compatible with a variety of mainstream tube materials, including all-plastic tubes, aluminum-plastic composite tubes, PE tubes, PP tubes, and specially shaped tubes.

It accommodates the packaging of products with varying viscosities, ranging from low-viscosity liquids and medium-viscosity emulsions to high-viscosity creams. When paired with a photoelectric color-mark positioning system, it precisely aligns tube graphics, ensuring consistent seal positioning and enhancing overall product quality.
