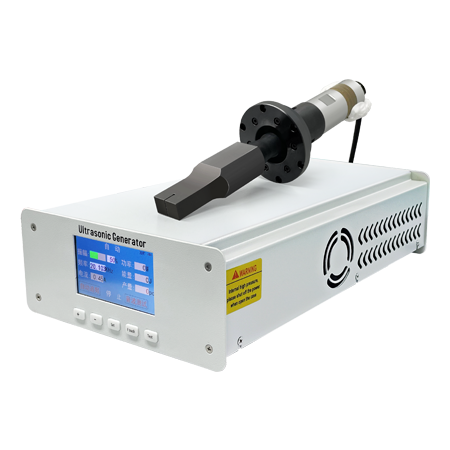

CQ28 Ultrasonic Extraction System is an ultrasonic product for the matching of extraction equipment. The ultrasonic core accessories composed of intelligent automatic frequency tracking ultrasonic generator, high-Q high-power transducer, and titanium alloy extraction tool head have good performance in extraction, homogenization, stirring, emulsification and other aspects. The system has functions such as automatic frequency tracking, adjustable power, adjustable amplitude, and abnormal alarm. Equipped with RS485 communication, various parameters can be changed and observed through HMI.
  • Products Description
      Intelligent automatic frequency tracking ultrasonic generator, real-time frequency tracking, to ensure that the ultrasonic wave is in the best effect range;28khz 1000W high-power transducer, low impedance, high conversion efficiency, strong amplitude;Titanium alloy extraction application tool head has high conversion efficiency and long service life;PLC or RS485 control function, with error output port;Abnormal protection of frequency, power, transducer current, etc.

      Application areas: biotechnology, chemical technology, pharmaceutical technology, food technology, environmental technology.
      Fragmentation of cells, bacteria, viruses, spores and other cellular structures
      Homogeneous soil and rock samples
      Preparation of DNA fragmentation in high-throughput sequencing and chromatin immunoprecipitation
      Study the structural and physical characteristics of rocks
      Dispersion of pharmaceutical substances for injection
      Ultrasound to homogenize beverages
      Dispersion and extraction of Chinese herbal medicine
      Alcoholization of wine-aging technology
      Cracking, emulsification, homogenization and crushing of particulate matter such as carbon nanotubes and rare earth materials
      Speed up the dissolution and speed up the chemical reaction, for example for the processing of oils and fats
    Technical Parameters
      Model no. Working frequency Ultrasonic power Working voltage Wroking diameter
      CQ28-D20H185 27.80±0.8khz 1000W 220±10% 20mm
    Product Manual Download
  • CQ28 Ultrasonic Extraction Device
  • Applications
    Ultrasonic Extractor System CQ28
    Applications of ultrasonic extractor machine-CQ28
    Applications of ultrasonic extractor machine-CQ28
    Applications of ultrasonic extractor machine-CQ28
    Applications of ultrasonic extractor machine-CQ28
