CQ20 Ultrasonic Extraction System is an ultrasonic product for the matching of extraction equipment. The ultrasonic core accessories composed of intelligent automatic frequency tracking ultrasonic generator, high-Q high-power transducer, and titanium alloy extraction tool head have good performance in extraction, homogenization, stirring, emulsification and other aspects. The system has functions such as automatic frequency tracking, adjustable power, adjustable amplitude, and abnormal alarm. Equipped with RS485 communication, various parameters can be changed and observed through HMI.
  • Products Description
      ● Intelligent automatic frequency tracking ultrasonic generation drive, power and amplitude adjustable;
      ● 20khz 2600W high-power transducer;
      ● Titanium alloy extraction application tool head has high conversion efficiency;

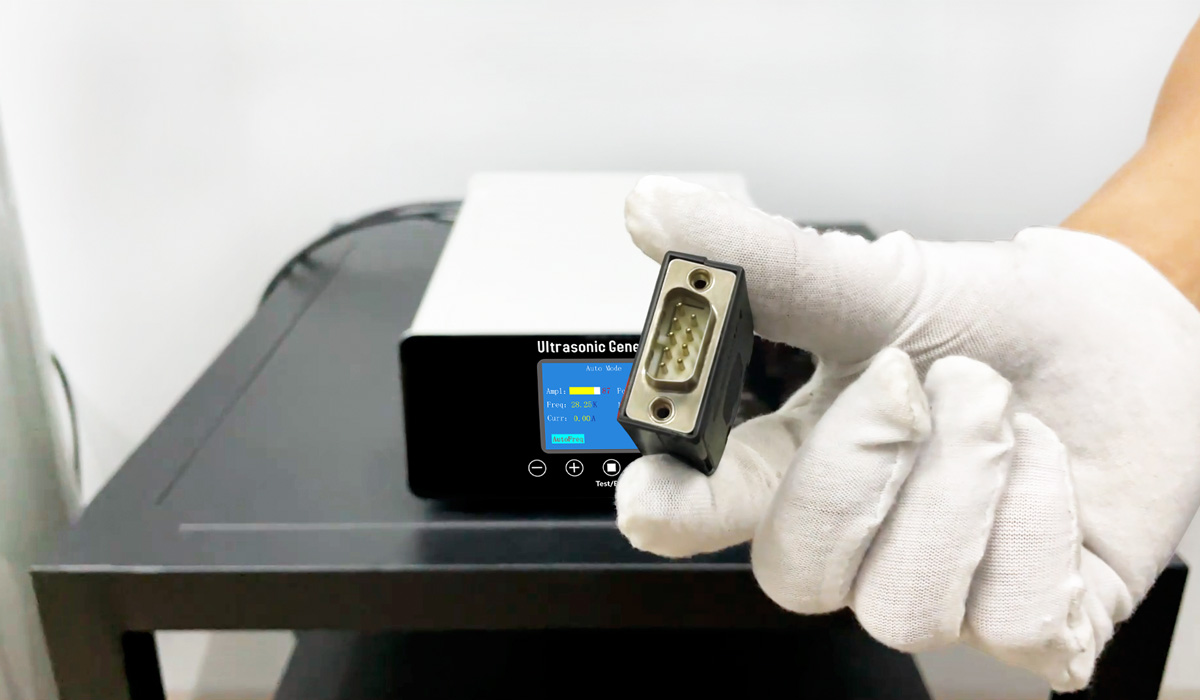

      ● RS485 communication function;
      ● Abnormal protection of frequency, power, amplitude, etc.;

      Application areas: biotechnology, chemical technology, pharmaceutical technology, food technology, environmental technology.

      Fragmentation of cells, bacteria, viruses, spores and other cell structures; homogeneous soil and rock samples;
      high-throughput sequencing and preparation of DNA fragmentation in chromatin immunoprecipitation;
      research on the structural and physical characteristics of rocks;
      injection medicine Dispersion of substances; ultrasonic homogenization of beverages; dispersion and extraction of Chinese herbal medicines;
      alcoholization and aging technology for wine; cracking, emulsification, homogenization and crushing of particulate matter such as carbon nanotubes and rare earth materials;
      speeding up dissolution and speeding up chemical reactions , Such as for the processing of grease.
    Technical Parameters
      Product number Working frequency Ultrasonic power Operating voltage Working diameter
      CQ20-D50H490 19.90±0.8khz 2600W 220±10% 50mm
    Product Manual Download
  • CQ20 Ultrasonic Extraction Device
  • Applications

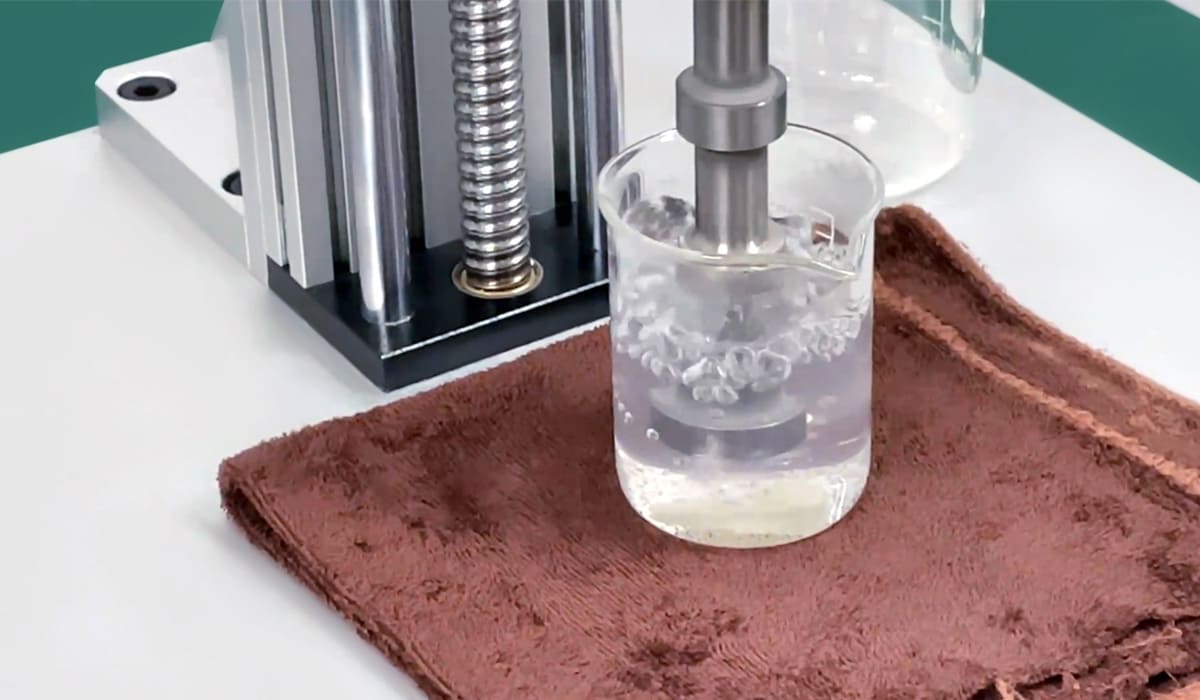

    Ultrasonic Extraction Device-CQ20
    Ultrasonic Extraction Device-CQ20
    Ultrasonic Extraction Device-CQ20
    Ultrasonic Extraction Device-CQ20
    Ultrasonic Extraction System-CQ20
    Ultrasonic Extraction System-CQ20
