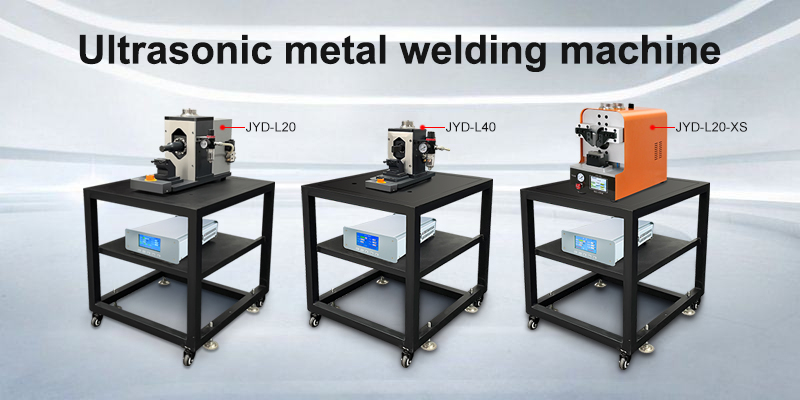

Ultrasonic Generator Malfunctions

• Unstable Power Output: Fluctuations in the generator’s power output can lead to inconsistent welding energy, compromising quality. For instance, sudden drops in power may prevent the weld zone from reaching the required temperature and pressure, resulting in weak bonds. Conversely, power surges can cause excessive localised heating, leading to over-melting or deformation of the weld point.

• Frequency Deviation: If the generator’s frequency deviates from the resonant frequency of the welding system, energy transfer efficiency decreases, impairing weld quality. This is akin to inefficient communication between two parties operating on different wavelengths—the ultrasonic energy fails to transmit effectively to the weld zone.

Transducer and Amplitude Transformer Issues

• Ageing or Damage: The transducer (which converts electrical energy into mechanical vibrations) and the amplitude transformer (which amplifies and focuses vibrational energy) are critical. Wear or damage to the transducer, such as cracks in its piezoelectric ceramic plates, can drastically reduce energy conversion efficiency. This may result in insufficient heat generation to fuse metals.

• Loose Connections: Loose couplings between the transducer and amplitude transformer cause energy loss during transmission. This reduces the vibrational energy reaching the weld zone, directly affecting weld integrity.

Horn Design and Wear
